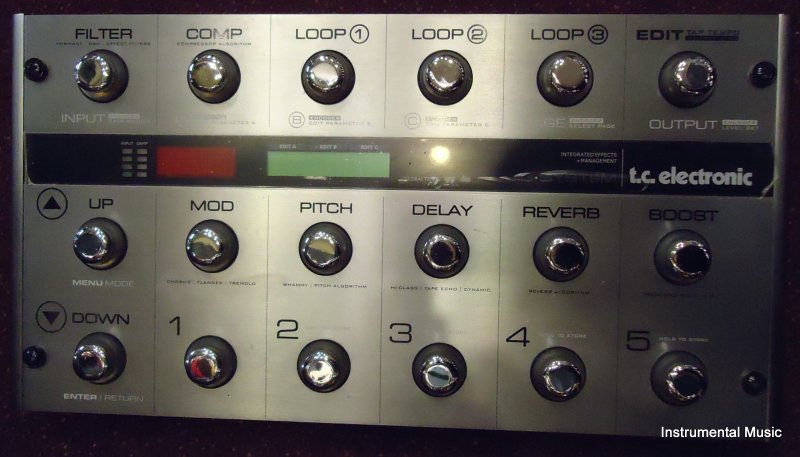

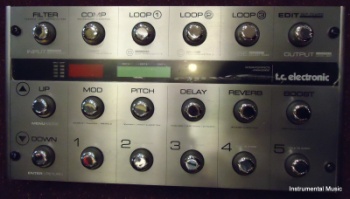

G-System is the world’s first complete high quality floor based Guitar System. Delivering a complete and uncompromised package of effects, control and integration, no other product will match the flexibility or the quality of the G-System. With its unique combination of two DSP sections providing the very highest quality effects on the market, analog loops, amp switching, floor control, and even 9VDC power outputs for your pedals, the G-System offers the highest level of integration attainable. Choose between a rack or a floor based setup, decide how the effects are routed, tailor the foot switch layout, and choose from more than 25 different on-board effecMain Features * Multi-effects processor on the floor * Up to 9 effects simultaneously * Fast and smooth preset changes featuring delay spill-overs * 4 switchable mono-loops for your favorite effect pedals * 1 additional loop/insert point dedicated for preamps * 4 x 9V DC outlets powering your effect pedals * USB connection for software updates * Ultimate flexibility as the board can be separated allowing you to place the GFX01 with loops etc. in a 19” rack while leaving the control board on the floor * MIDI for control of additional external MIDI units * Connections for 2/4 Expression pedals Technical Specifications Instrument Inputs Connectors: Two 1/4" phone jack, pseudo-balanced Impedance: 1 Mohm Max. Input Level: 18 dBu Min. Input Level for 0 dBFS: -6 dBu Sensitivity: -6dBu to +18 dBu Loop 1-4 Connectors: Two 1/4" phone jacks x 4 Impedance, input/output: 91 kOhm/100 Ohm Max. Output Level: 12 dBu Output Ranges: 6 to 10 dBu Insert Connectors: Two 1/4" phone jacks Impedance, input/output: 24 kOhm(Balanced 35 kOhm)/ 100Ohm(Balanced 200 Ohm) Max. Output Level: 12 dBu Output Ranges: 6 to 10 dBu Analog Outputs (L/R) Connectors: Two 1/4" phone jacks Impedance: 100 Ohm (Balanced 200 Ohm) Max. Output Level: 12 dBu Output Ranges: 0 to 10 dBu Connectors: RCA Phono (S/PDIF) Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958, 75Ohm Sample Rate: 44.1 kHz Frequency Response: typ. : +0.0/-0.4 dB, 20 Hz to 20 kHz Dynamic Range: typ.: > 95 dB, 20Hz to 22kHz, 0dBFS THD: typ.: < -80 dB, 20Hz to 22kHz, -1dBFS A to D Conversion: 24 bit, 128 x oversampling bitstream, DSR D to A Conversion: 24 bit, 128 x oversampling bitstream, DSR EMC Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety Certified to: IEC 60065 / EN 60065/ UL 60065 / CSA E60065 Environment Operating Temperature: 32° F to 122° F (0° C to 50° C) Storage Temperature: -22° F to 167° F (-30° C to 70° C) Humidity: Max. 90 % non-condensing Control Interface MIDI: In/Out: 5 Pin DIN USB: USB 1.1, type B Pedal (Exp and Vol): Four 1/4" stereo phone jack (2 on GFX01, 2 on Control Board) Relay closure (separate tip and ring connection to sleeve): 4 relays on two 1/4" stereo phone jack for amp switching Misc DC output: 4 x 9VDC outputs, 200mA totally, Shield(+) Pin(-) General Finish: Anodized aluminum front Plated and painted steel chassis Display: 2x20 character STN-LCD display + 20x7 Footswitches: Dot-Matrix 18 Illuminated Footswitches (6 with build-in Rotary Encoders) Dimensions: 20.2" x 10.5" x 4.1" (512.9mm x 265.9mm x 103.4mm) Weight: 17.2 lb. (7.83 kg) Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select) Power Consumption: <20 Wts.
